MB1 / Fresh Milk · Master Coffee

Commercial Coffee Machines

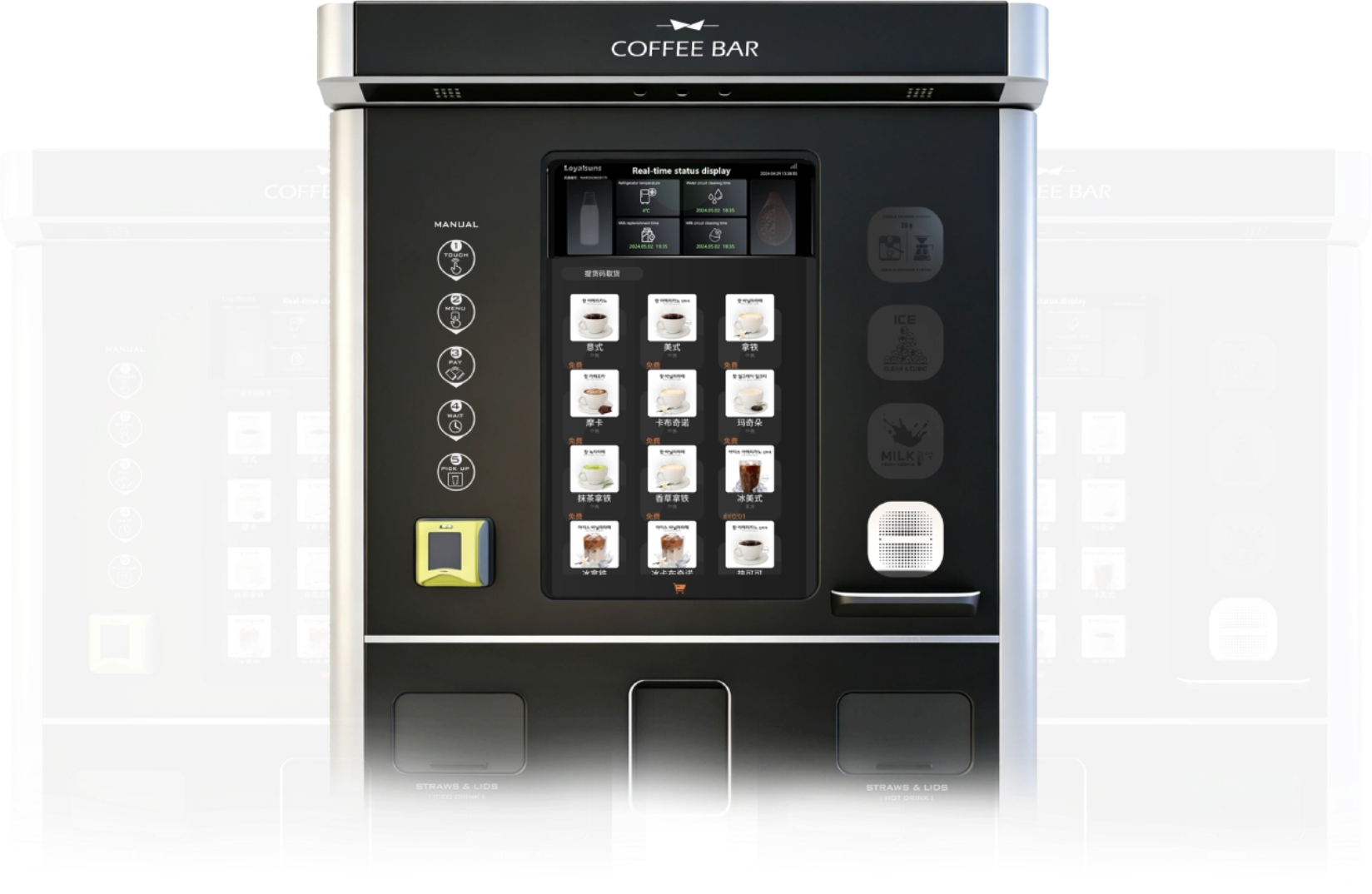

MB1

Product Highlights

As a flagship model of the brand, it is equipped with dual brewers and a fresh milk module, allowing direct use of fresh milk to create cold and hot milk foam with a smoother, creamier texture. It is an ideal choice for premium unmanned coffee shops. Additionally, the machine features a CIP fully automatic milk circuit cleaning system and an over-temperature/expired quality monitoring system, addressing industry pain points such as difficult cleaning of fresh milk coffee machines and challenges in preserving fresh milk.

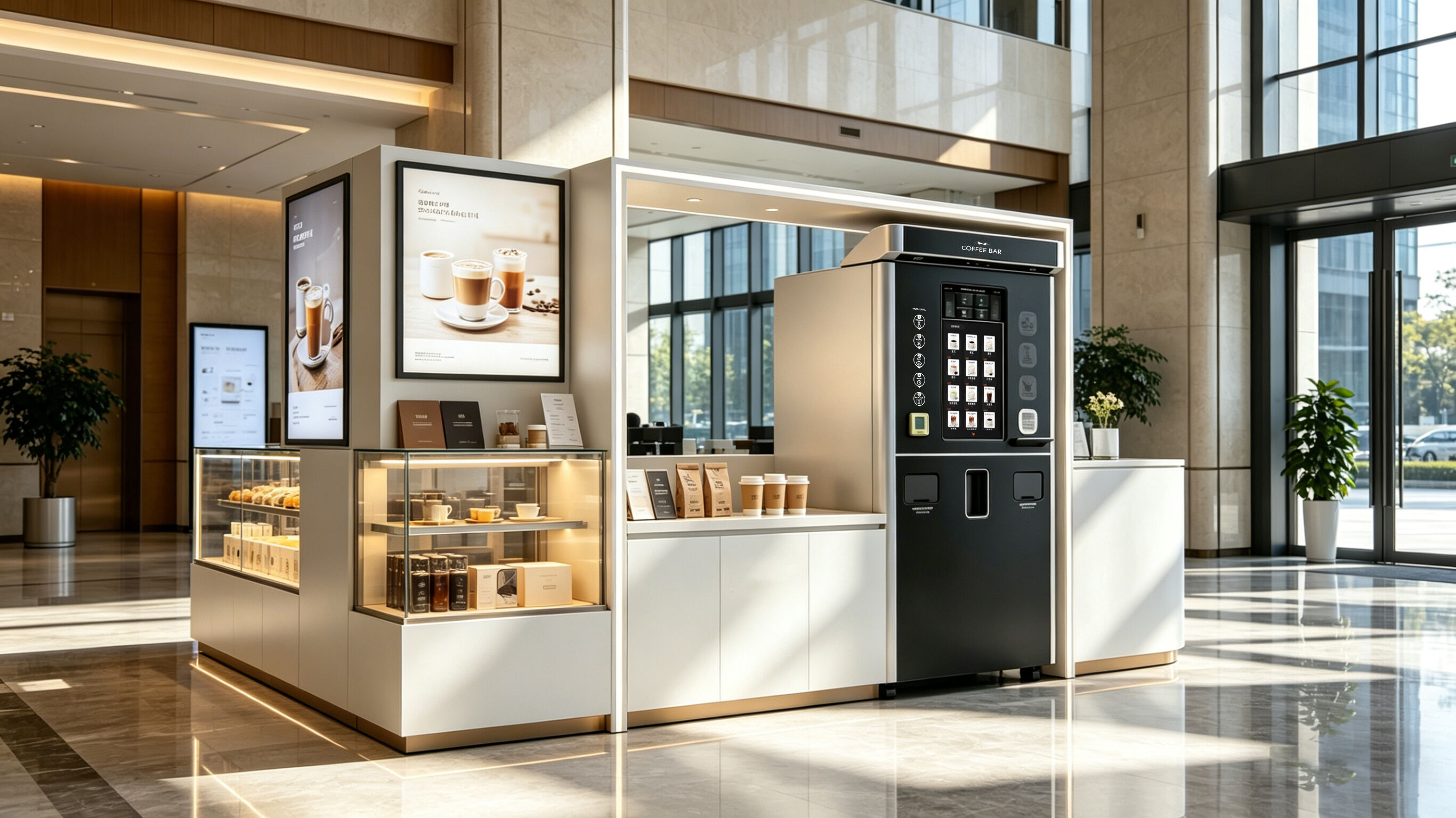

Placement Scenarios

High-end Office / Luxury Hotel / Unmanned Café / Shopping Mall / Airport...

24 Hour operation, long maintenance interval

Who can say no to such coffee experience?

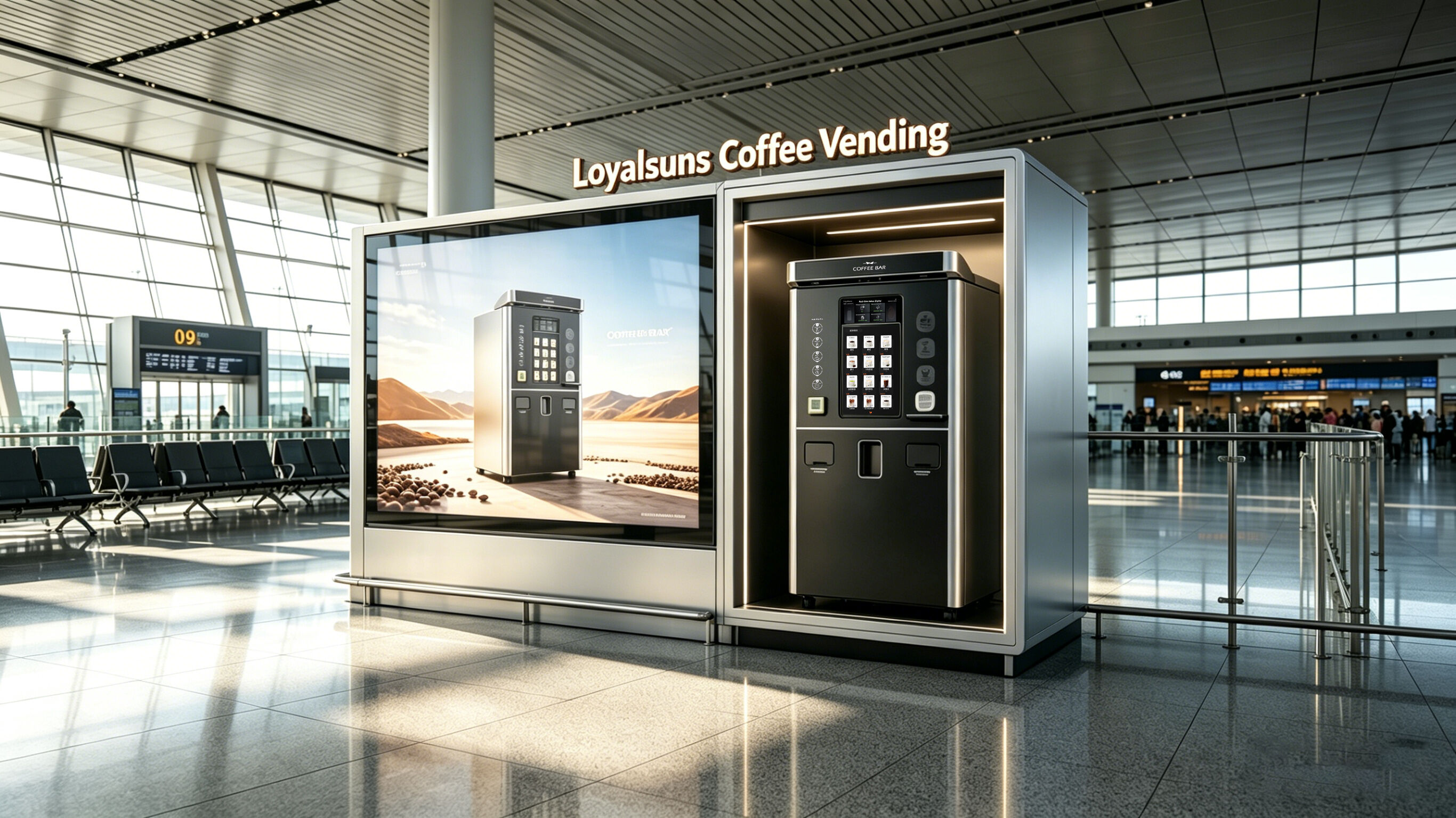

生成产品环境效果图 (3)kl;l++.jpg

STABLE · EASY TO OPERATE & MANAGE

FULL UNMANNED SCENARIO

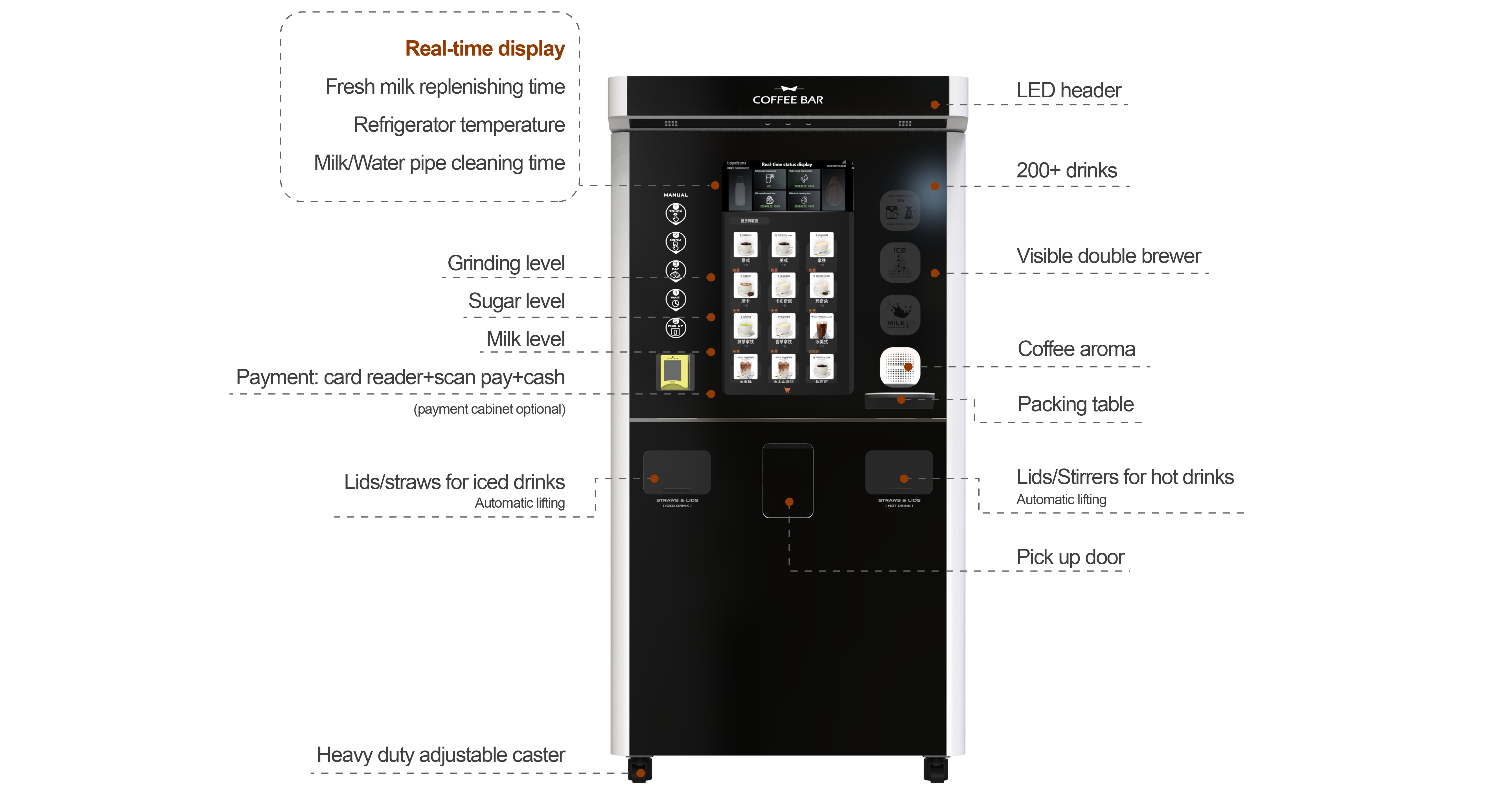

Product Configuration Quick Review

Brewing Status (Grinding Amount: 18g)

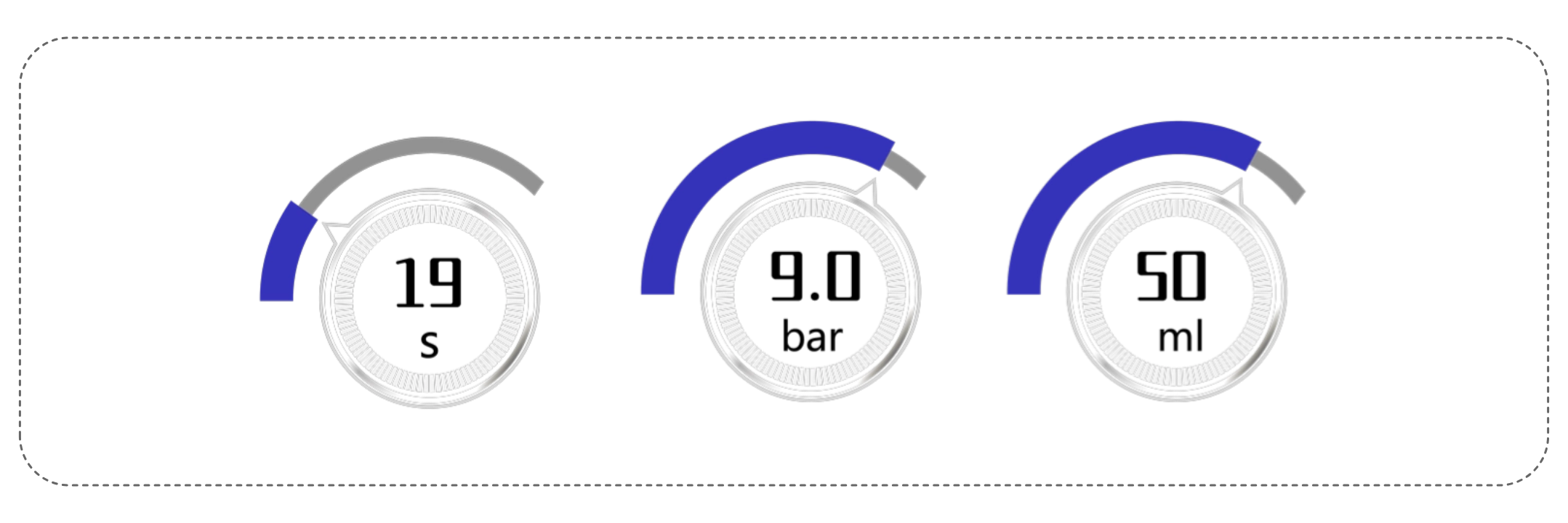

SMB Intelligent Brewing System

Flow rate preset · Soaking preset · Brewing pressure preset · Pressing level preset.

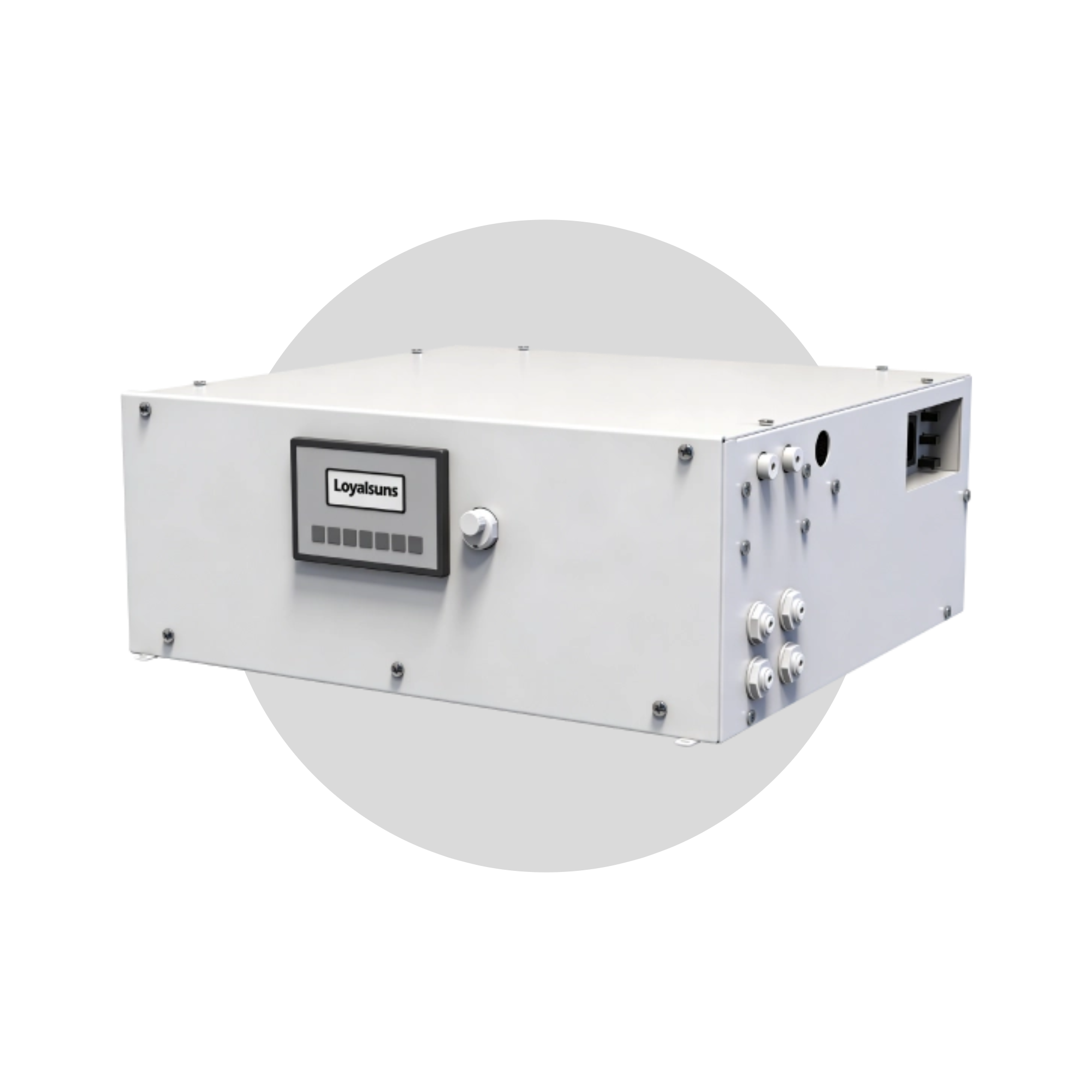

Fresh Milk Module

0-4 °C Preservation

cold/hot dense milk foam

CIP fully automatic pipeline cleaning system

over temperature/shelf life quality monitoring system

92L refrigerator

Self-developed & Self-produced

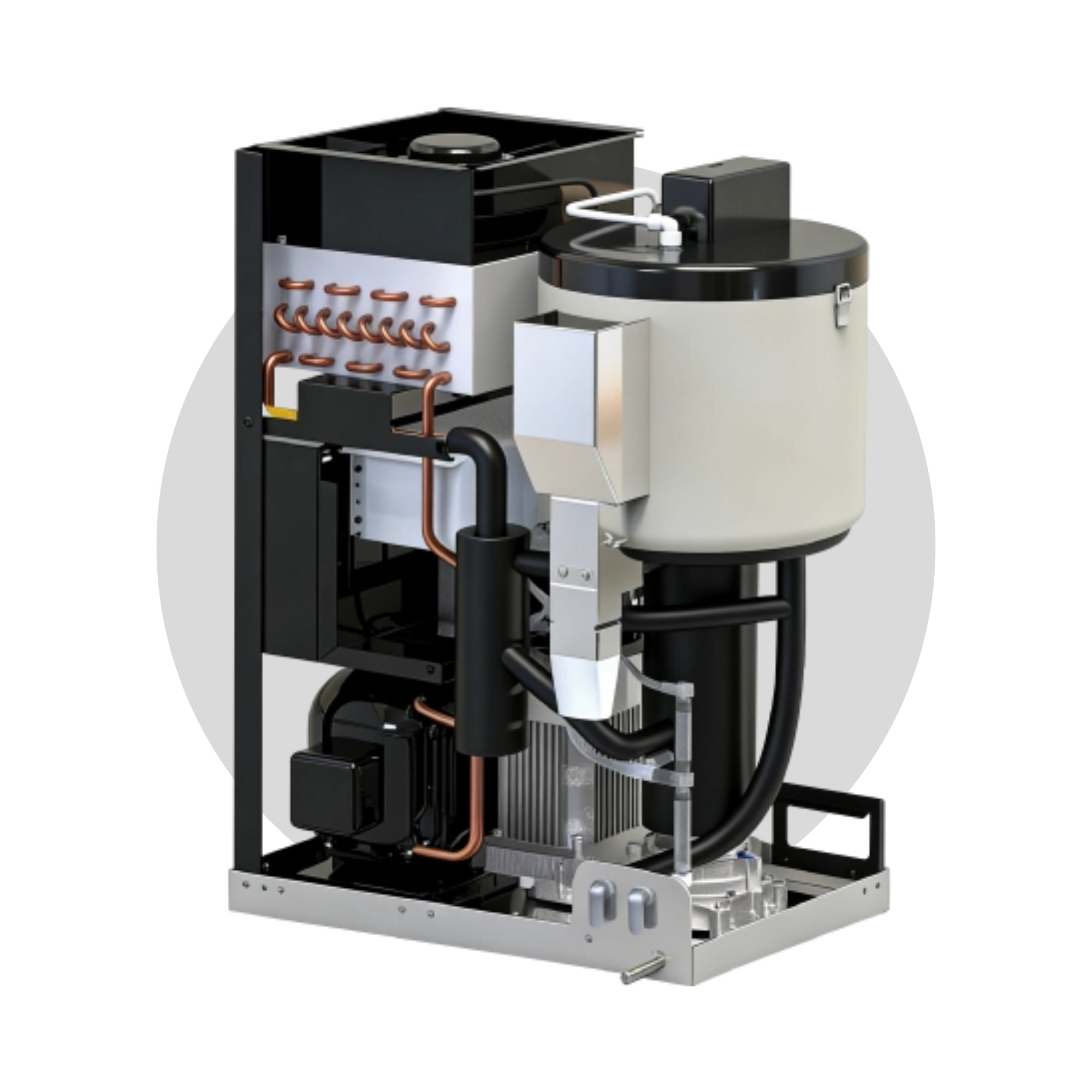

Ice Making Module

120kg class ice maker for different scenarios

R290 environmentally friendly refrigerant

Accurate quantitative ice dispensing with an error of：±5g

Fully automatic spray cleaning, comprehensive sterilization

Crystal & Solid ice cubes

Long time operating under 5-43 °C

Self-developed & Self-produced

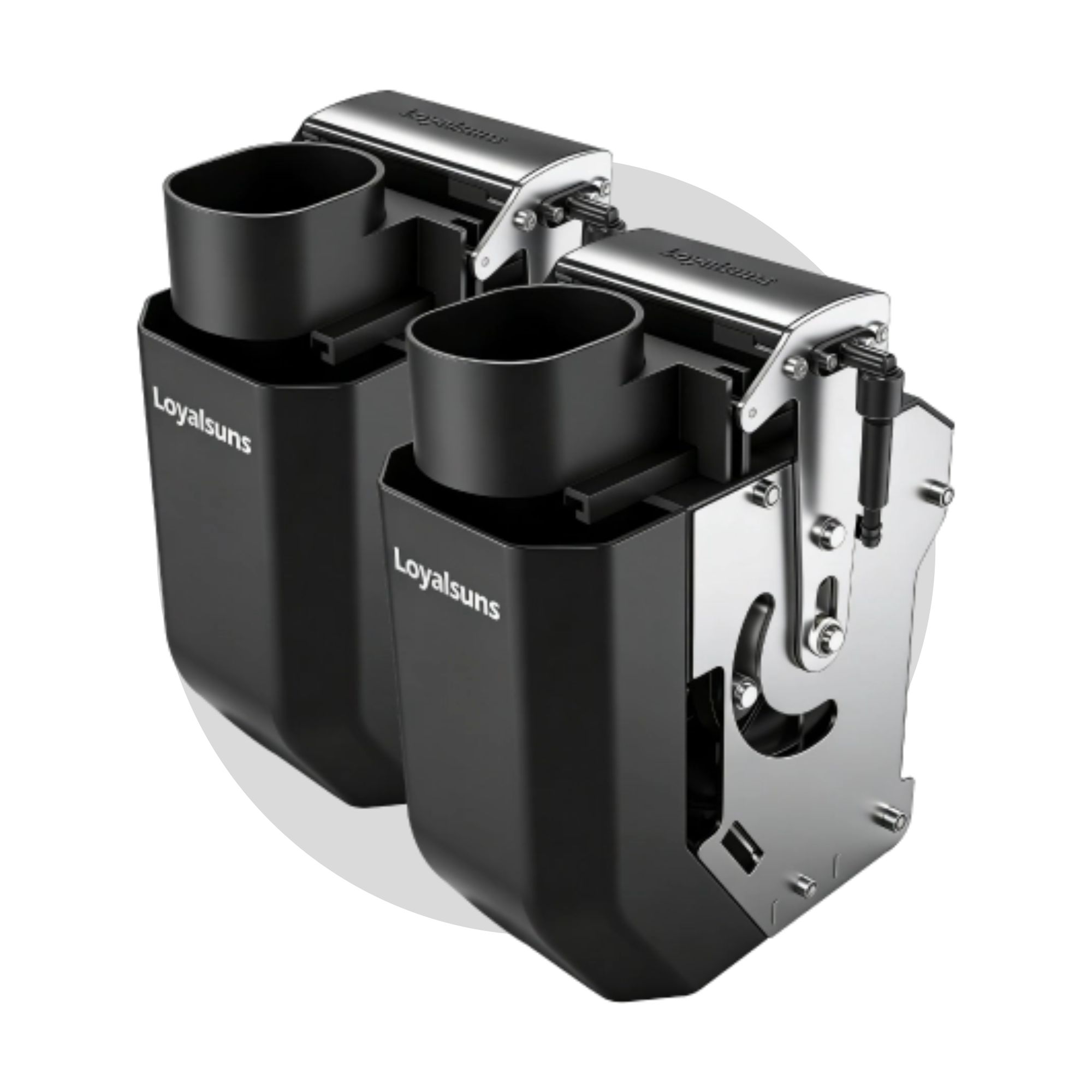

Double Brewer

Φ53mm large diameter commercial extraction chamber

50000 cups maintenance free, 300000 cups total lifespan

12-26g/cup grinding amount

PTC constant temperature system

Fully water-proof

Easy to remove / install

Self-developed & Self-produced

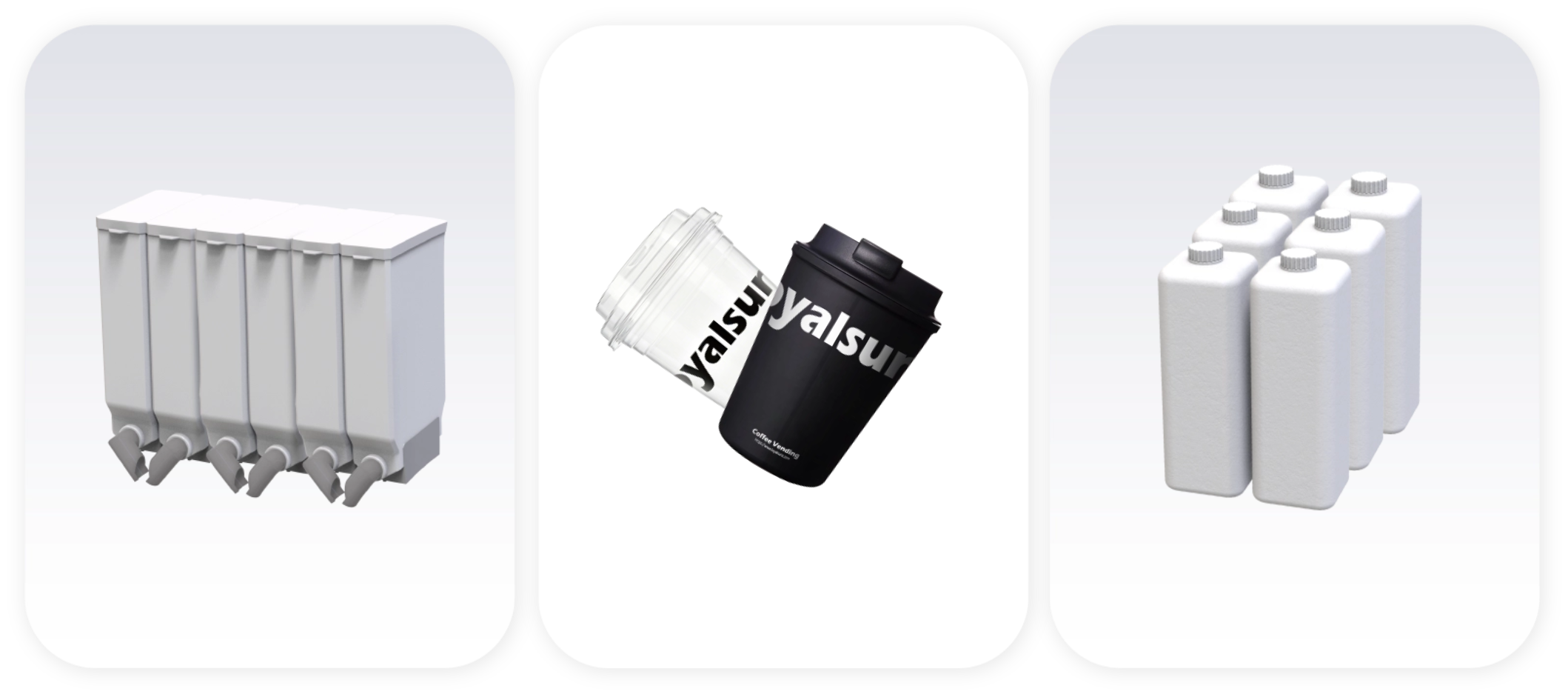

Powder Canister × 6 · Paper cup x100 · Plastic cup x100 · Liquid Material × 6

200 + Drinks

Americano, Espresso, Fat White, Cappuccino, Mocha, Fruit Coffee, Juice (Tea Optional)

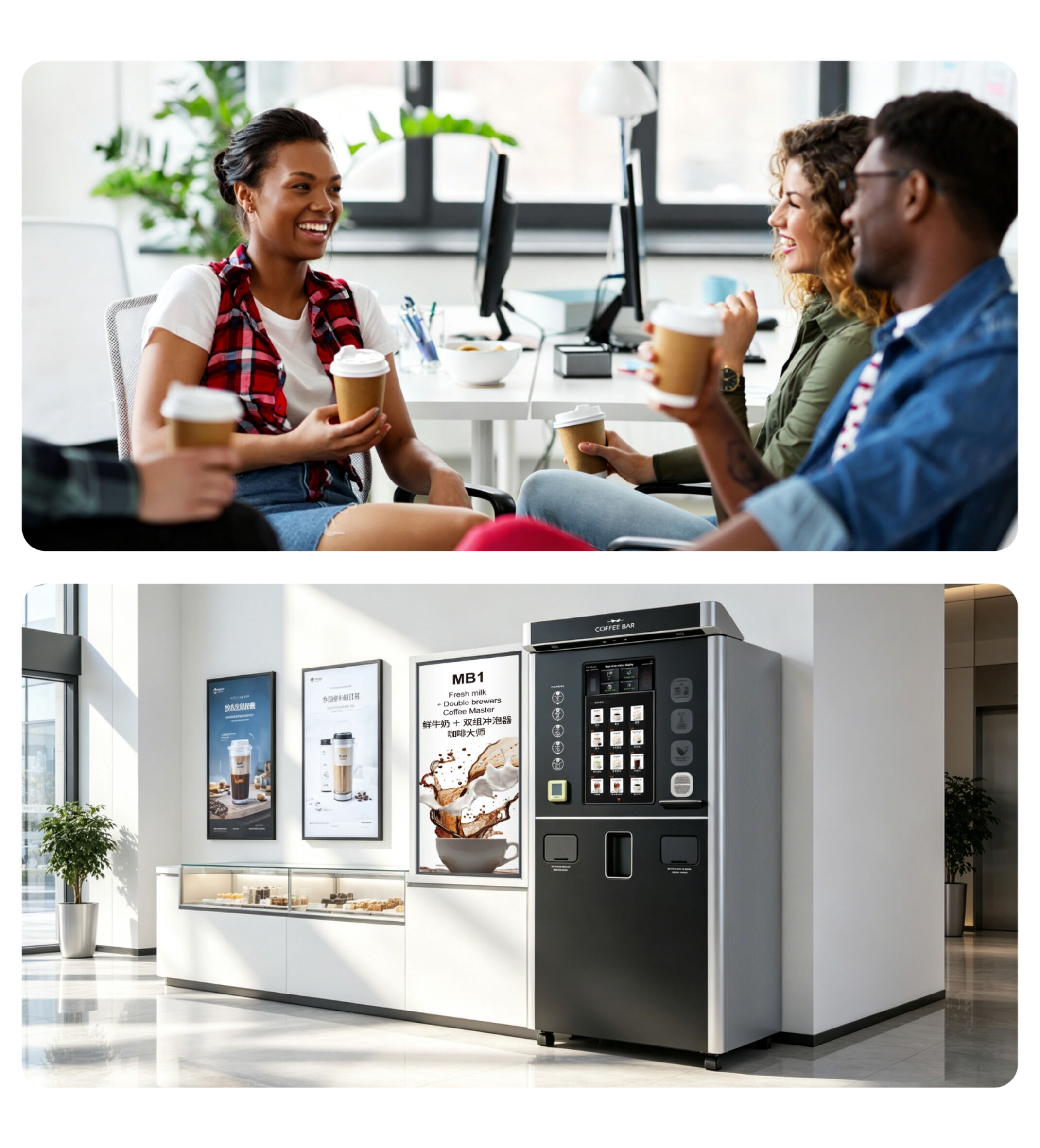

Convenient Coffee Experience

Indulge in freshly brewed masterclass coffee during work time

The ideal extraction pressure for coffee is 9 Bar. Compared to baristas, the SMB intelligent extraction system has more precise and stable control over the extraction pressure value.

Specifications

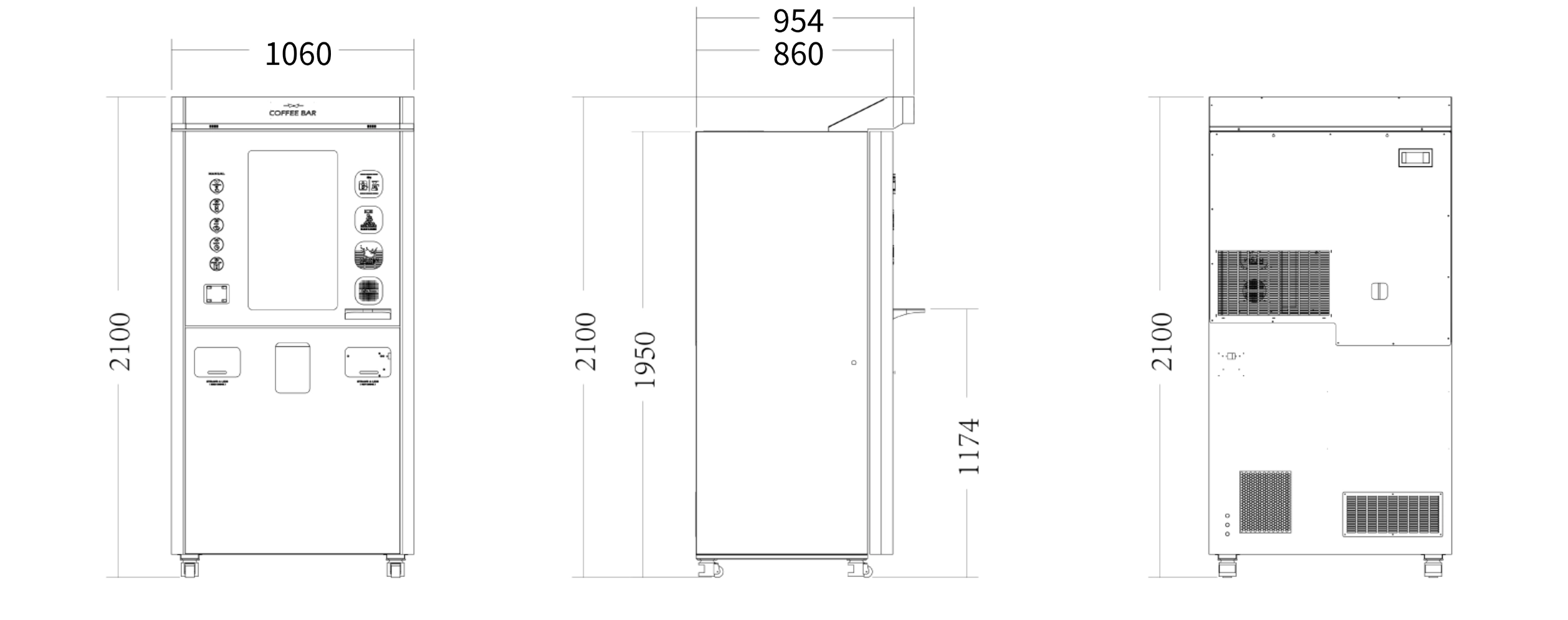

Dimension	H2100mm×W1060mm×D860mm
Weight	375Kg
Operating Temperature	5-43℃
Power Supply Specification	220-240V~ 50Hz 220-230V~ 60Hz 120V~ 60Hz
Standby Power	＜180W
Screen Size	32-inch touch screen
Network	4G/WIFI/RJ45 Cable
Payment Method	WeChat / Alipay / Card Reader / Cash / Third party Interfaces
Pick-up Door	Transparent lifting door ( anti-pinch protection )
Coffee Aroma Outlet	Equipped
Packing Table	Equipped
Speaker	8Ω10W Dual Channel Speakers
Door Lock	Electronic & Mechanical
Water Supply	18L barreled water×3（ include tap water connection）
Heating Method	1800W High pressure resistant heat storage boiler+800W milk heating unit
Paper Cup Dispenser	1
Paper Cup Storage	2 tubes ( approx.70-100 cups)
Paper Cup Specification	90 mm, 12/16 oz
Transparent Cup Dispenser	1
Transparent Cup Storage	2 tubes ( approx.100 cups )
Transparent Cup Specification	90/98 mm, 16 oz
Cup Lid	Double dispensing outlets (separate for hot & cold drinks)
Lid Storage	About 100 sets each for hot & cold drinks Including cup lids + straws / stirrers
Lid Specification	90mm-98mm
Pumps For Syrup	6
Canisters For Powder	6*3L
Tea Canister	2*3L（for tea brewer option）
Brewer	2
Brewing Parameter	2*26g 9bar（1 set can be optionally configured as a tea extractor）
Coffee Bean Hopper	2*2.5kg
Grinder	64mm flat burr
Ice Maker	120 kg/day
Refrigerated Compartment	92L fridge, 4°C constant temperature for milk
Fresh Milk Module	10L Milk Container × 2 (Hot & Cold Milk / Milk Foam)

One-stop intelligent operation management platform

Loyalsuns' intelligent development strategy has extended to a brand-added service line, namely the Loyalsuns 3.0 operational management system. This system enables network-connected control of coffee machines, allowing remote sales management, equipment management, material management, and maintenance operations. It addresses the prevalent data silo phenomenon in the industry, freeing product selection, pricing, maintenance, and troubleshooting from empiricism, and enabling efficient operations through interconnected big data.


Quick integration with third-party software and external payment devices

Equipment Management · Material Management · Third-party Software Integration Operation Management

Sales Management · External Device Payment

Why Us

Focusing on the R&D of commercial autonomous coffee machines for 10+ years

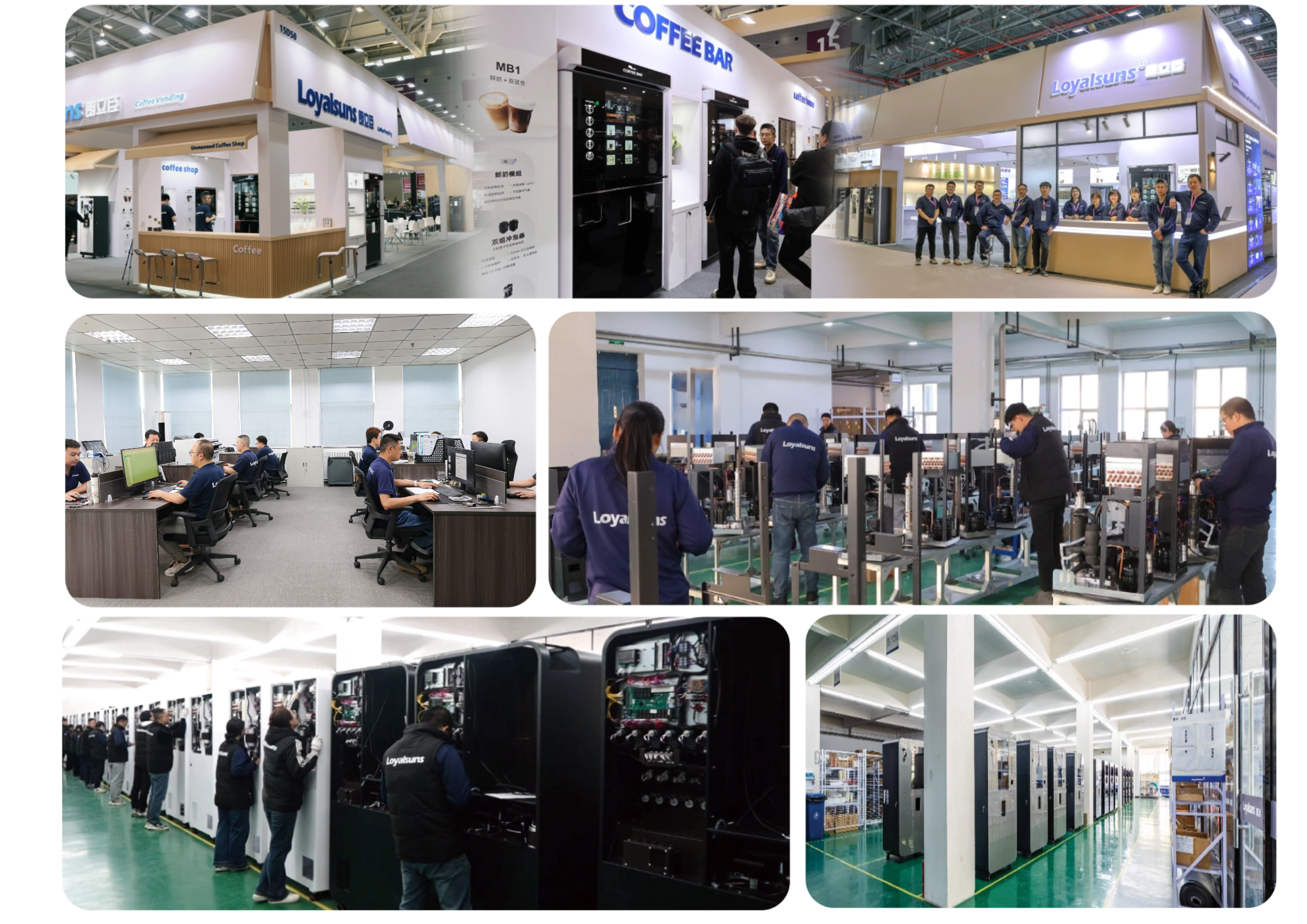

R&D center 2000+ ㎡ · Production base 20000+ ㎡ · R&D team 30+

Multi Country Certification


Loyalsuns

Tailored Solutions

In addition to selling standard commercial coffee machines, we also provide customers with personalized customization services for self-service devices.


Appearance Customization · Module Combination · System Customization · New Function Development

After sales service and technical support

The company has a 12 year professional R&D team with senior engineers in structural design, system development, mechanical automation and other fields, and has obtained dozens of technical patents.

2-to-1 dedicated customer service for software and hardware, providing 24-hour after-sales and technical support to ensure stable operation of the equipment. At the same time, we provide professional equipment training and operational guidance to help customers efficiently establish business.
