Loyalsuns MA3
COMMERCIAL COFFEE MACHINE
Competitive Advantages
○ Soda
○ Tea
○ Commercial class brewer
○ 120Kg-class ice maker
○ SMB Intelligent Extraction System
- Overview
- Recommended Products
MA3 / Soda & Tea, Coffee Magician
Commercial Coffee Machines
MA3
Product Highlights
Equipped with a tea brewer and an independent carbonated module, MA3 can produce a wide range of premium trendy beverages, including sparkling coffee, black tea, green tea, jasmine tea and milk tea. It also serves classic coffee drinks such as latte, Americano, mocha and flat white, delivering coffee at golden-cup standard quality.

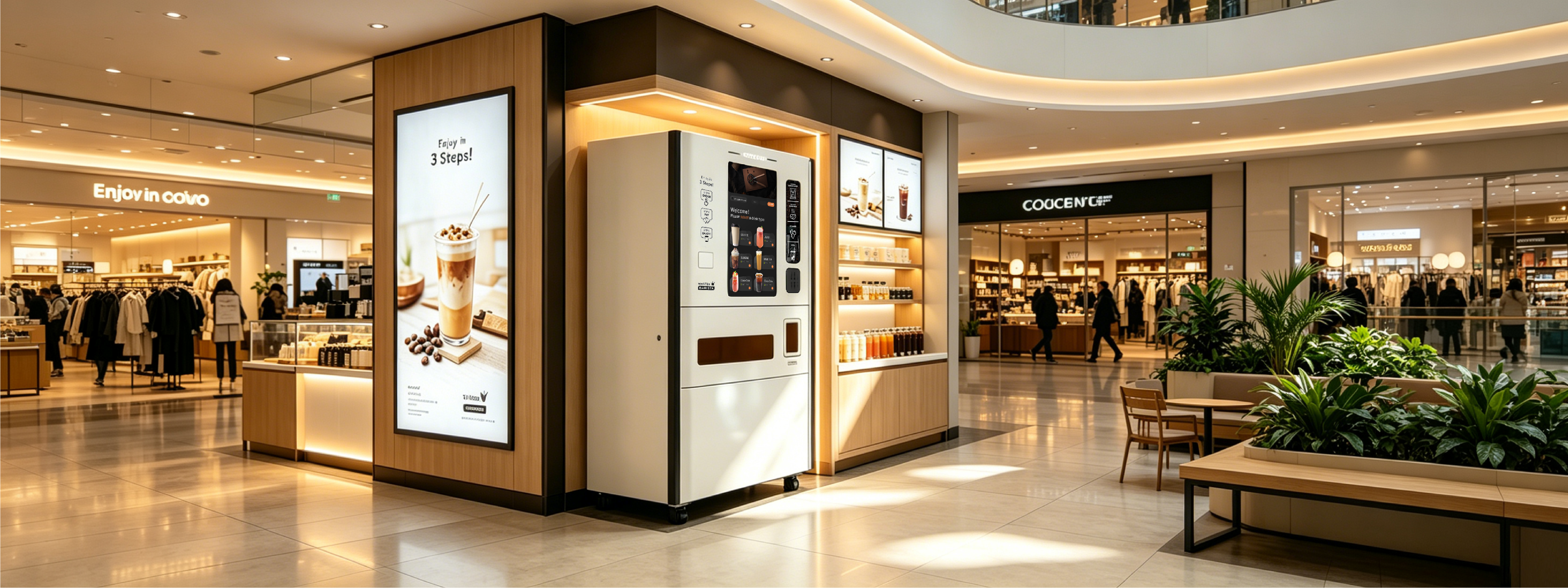

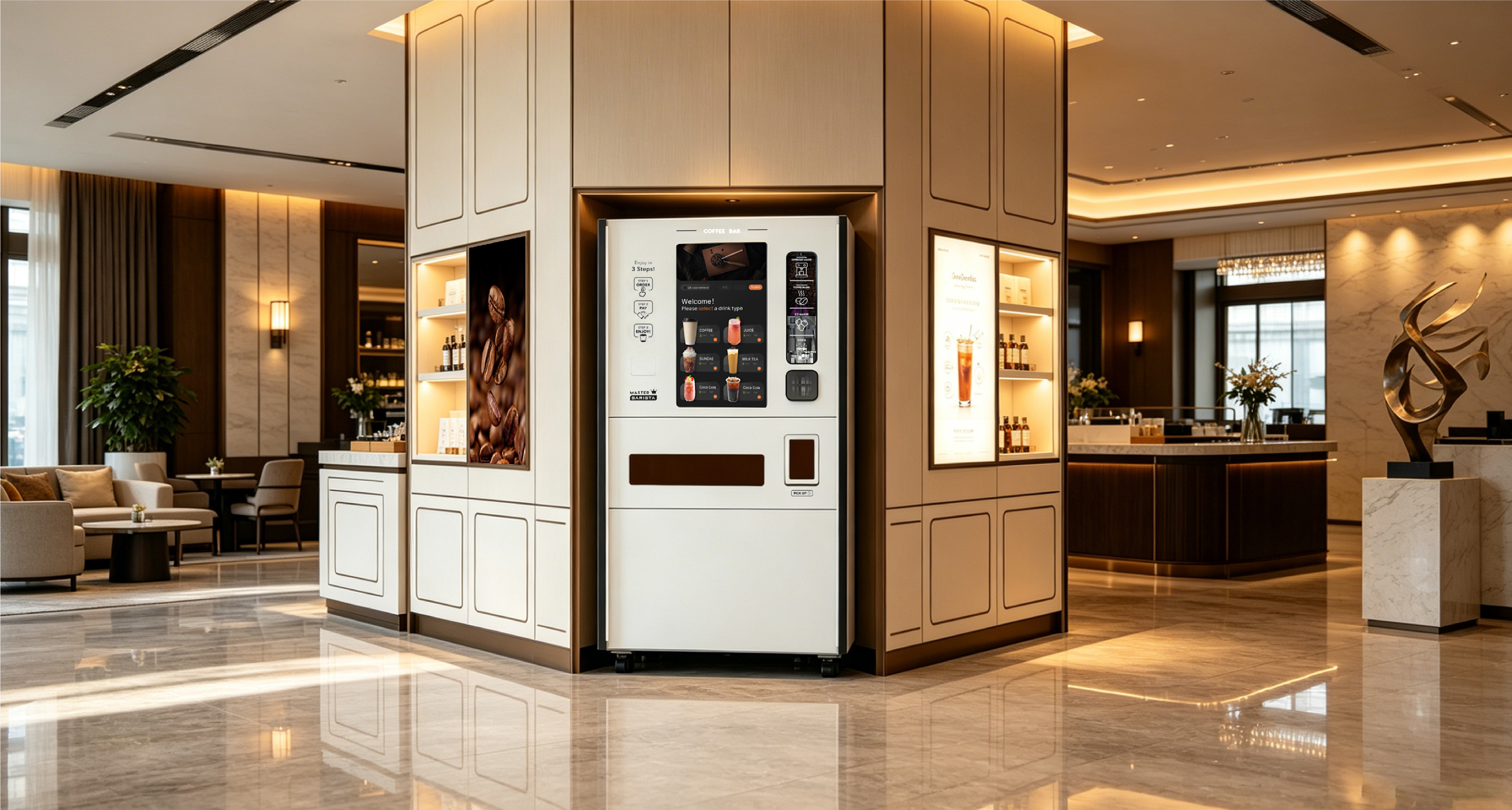

Placement Scenarios
Hotel / Shopping Mall / University / Airport / Scenic Areas..
24 Hour operation, low-investment, long maintenance interval
Who can say no to such coffee experience?
STABLE · EASY TO OPERATE & MANAGE
FULL UNMANNED SCENARIO
Product Configuration Quick Review
Brewing Status (Grinding Amount: 18g)
SMB Intelligent Brewing System
Flow rate preset · Soaking preset · Brewing pressure preset · Pressing level preset.
1
Carbonated Module
Rich bubbles
Continuously producing sparkling water
R290 environmentally friendly refrigerant
Long time operating under 5-43 °C
Self-developed & Self-produced
2
Ice Making Module
120kg class ice maker for different scenarios
R290 environmentally friendly refrigerant
Accurate quantitative ice dispensing with an error of：±5g
Fully automatic spray cleaning, comprehensive sterilization
Crystal & Solid ice cubes
Long time operating under 5-43 °C
Self-developed & Self-produced
3
Double Brewer
Φ53mm large diameter commercial extraction chamber
50000 cups maintenance free, 300000 cups total lifespan
12-26g/cup grinding amount
PTC constant temperature system
Fully water-proof
Easy to remove / install
Self-developed & Self-produced

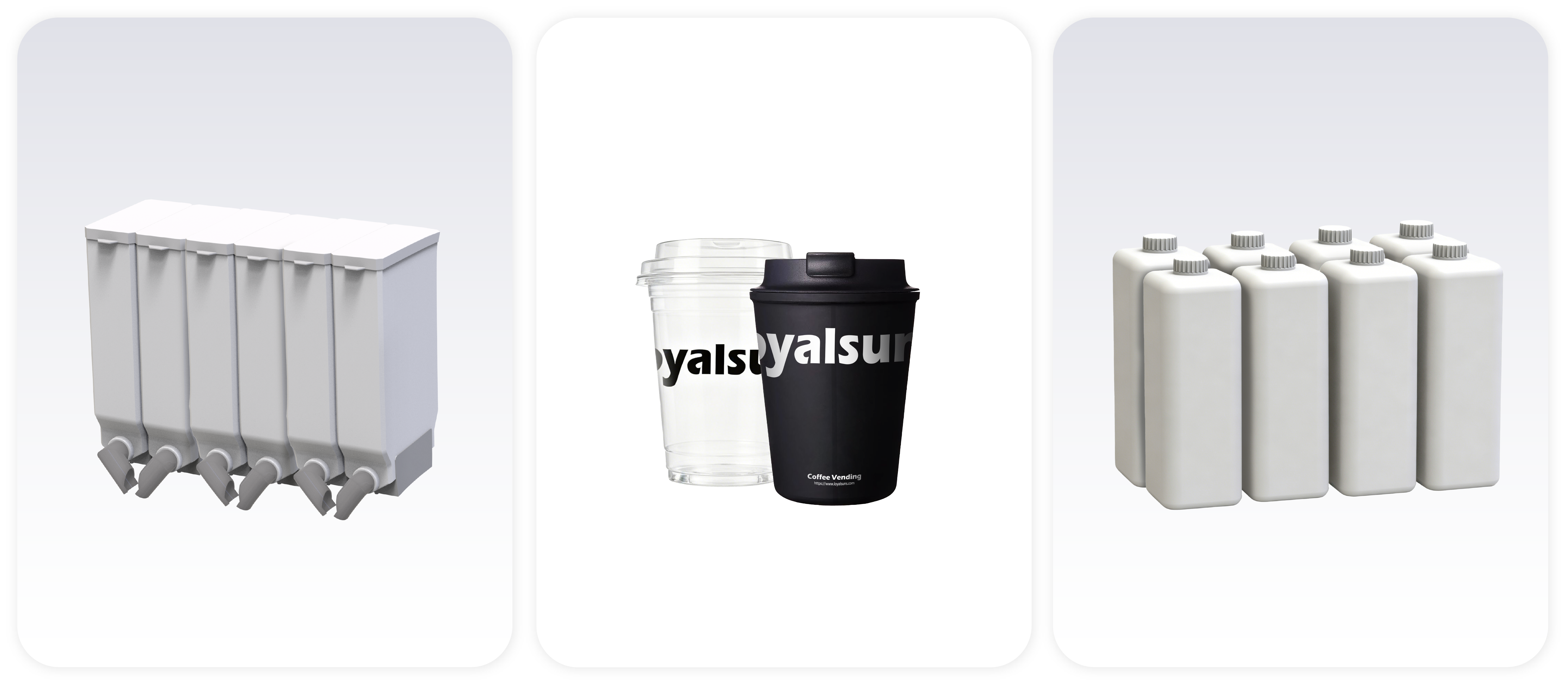

Powder Canister × 4 / Tea Canister × 2 · Paper cup x200 · Plastic cup x200 · Liquid Material × 8
200 + Drinks
Americano, Espresso, Latte, Cappuccino, Mocha, Sparkling Coffee, Soda Drinks, Juice, Tea…
Convenient Coffee Experience
Indulge in freshly brewed masterclass coffee during work time
The ideal extraction pressure for coffee is 9 Bar. Compared to baristas, the SMB intelligent extraction system has more precise and stable control over the extraction pressure value.
Specifications
Dimension |
H1950mm×W1060mm×D805mm |
Weight |
375Kg |
Operating Temperature |
5-43℃ |
Power Supply Specification |
220-240V~ 50Hz 220-230V~ 60Hz 120V~ 60Hz |
Maximum Power |
3100W / 2800W |
Standby Power |
＜200W |
Screen Size |
32-inch touch screen |
Network |
4G/WIFI/RJ45 Cable |
Payment Method |
WeChat / Alipay / Card Reader / Cash / Third party Interfaces |
Cleaning Method |
Standard cleaning/Regular cleaning/Descaling cleaning |
Pick-up Door |
Transparent lifting door ( anti-pinch protection ) |
Coffee Aroma Outlet |
Equipped |
Speaker |
8Ω10W Dual Channel Speakers |
Cup Carrying Method |
Visible linear motion cup carrier |
Door Lock |
Electronic & Mechanical |
Water Supply |
18L barreled water×3（ include tap water connection） |
Heating Method |
1800W （1500W）High pressure resistant heat storage boiler |
Paper Cup Dispenser |
1 |
Paper Cup Storage |
4 tubes ( approx.140-200 cups) |
Paper Cup Specification |
90 mm, 12/16 oz |
Transparent Cup Dispenser |
1 |
Transparent Cup Storage |
4 tubes ( approx.200 cups ) |
Transparent Cup Specification |
90/98 mm, 16 oz |
Pumps For Syrup |
8 |
Canisters For Powder |
6*3L |
Tea Canister |
2*3L（for tea brewer option） |
Brewer |
2 |
Brewing Parameter |
2*26g 9bar（1 set can be optionally configured as a tea extractor） |
Coffee Bean Hopper |
2*2.5kg |
Grinder |
64mm flat burr |
Ice Maker |
120 kg/day |
Carbonated Module |
Equipped |
One-stop intelligent operation management platform
Loyalsuns' intelligent development strategy has extended to a brand-added service line, namely the Loyalsuns 3.0 operational management system. This system enables network-connected control of coffee machines, allowing remote sales management, equipment management, material management, and maintenance operations. It addresses the prevalent data silo phenomenon in the industry, freeing product selection, pricing, maintenance, and troubleshooting from empiricism, and enabling efficient operations through interconnected big data.
Quick integration with third-party software and external payment devices
Equipment Management · Material Management · Third-party Software Integration Operation Management
Sales Management · External Device Payment
Why Us
Focusing on the R&D of commercial autonomous coffee machines for 10+ years
R&D center 2000+ ㎡ · Production base 20000+ ㎡ · R&D team 30+
Multi Country Certification
Loyalsuns
Tailored Solutions
In addition to selling standard commercial coffee machines, we also provide customers with personalized customization services for self-service devices.
Appearance Customization · Module Combination · System Customization · New Function Development
After sales service and technical support
The company has a 12 year professional R&D team with senior engineers in structural design, system development, mechanical automation and other fields, and has obtained dozens of technical patents.
2-to-1 dedicated customer service for software and hardware, providing 24-hour after-sales and technical support to ensure stable operation of the equipment. At the same time, we provide professional equipment training and operational guidance to help customers efficiently establish business.
Whole machine warranty · 24-hour after-sales service · Free technical training· Lifetime technical support
Logistics And Transportation
Solution
For standard commercial coffee machines,
Lead time is 30 working days within 10 machines, and 60 working days between 10-20 machines.
For customized machines, please contact our experts for further discussion.
Unmanned and semi-unmanned scenario commercial coffee machines
