Loyalsuns coffee vending machine MC4
COMMERCIAL COFFEE MACHINE
Competitive Advantages
○ Commercial class brewer
○ 30Kg-class ice maker
○ SMB Intelligent Extraction System
- Overview
- Recommended Products

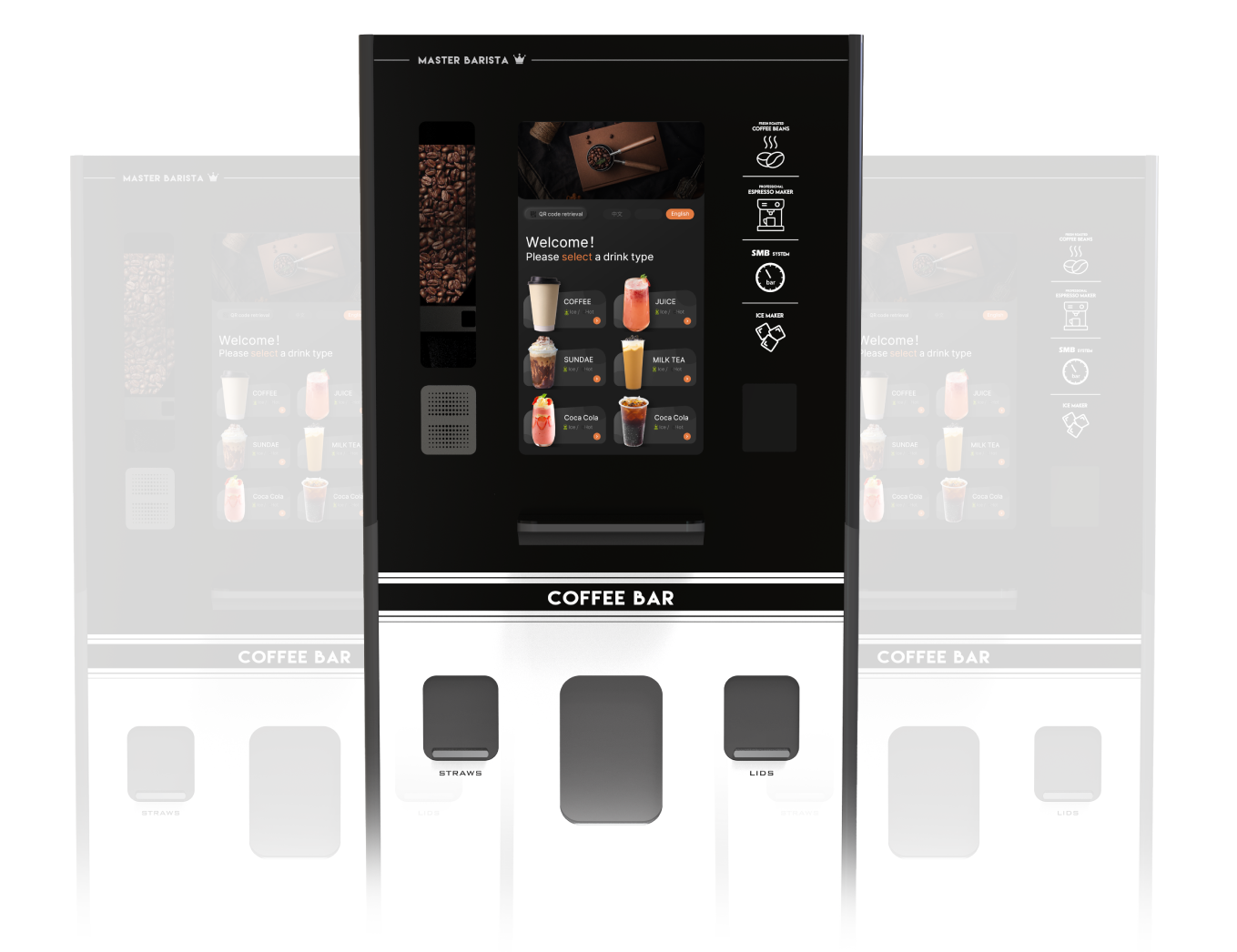

MC4 / Ideal choice for unmanned scenarios
Commercial Coffee Machines
MB1
Product Highlights
Tiny With Full Functionality
Commercial Use For Small Scenarios
MC4 is equipped with a 30kg-class ice maker, which is the smallest commercial self-service coffee machine with ice maker suitable for unmanned scenarios.
Placement Scenarios

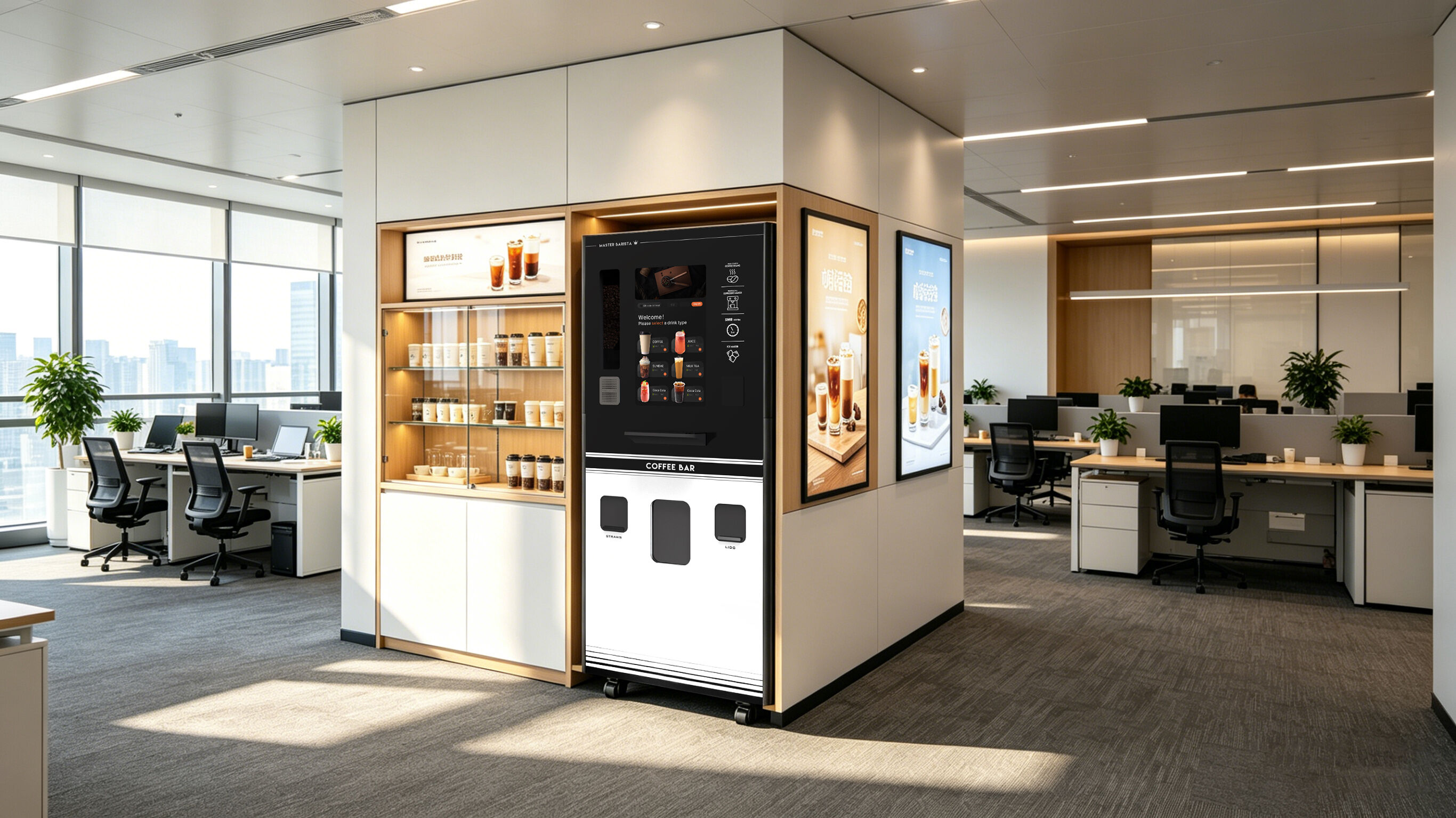

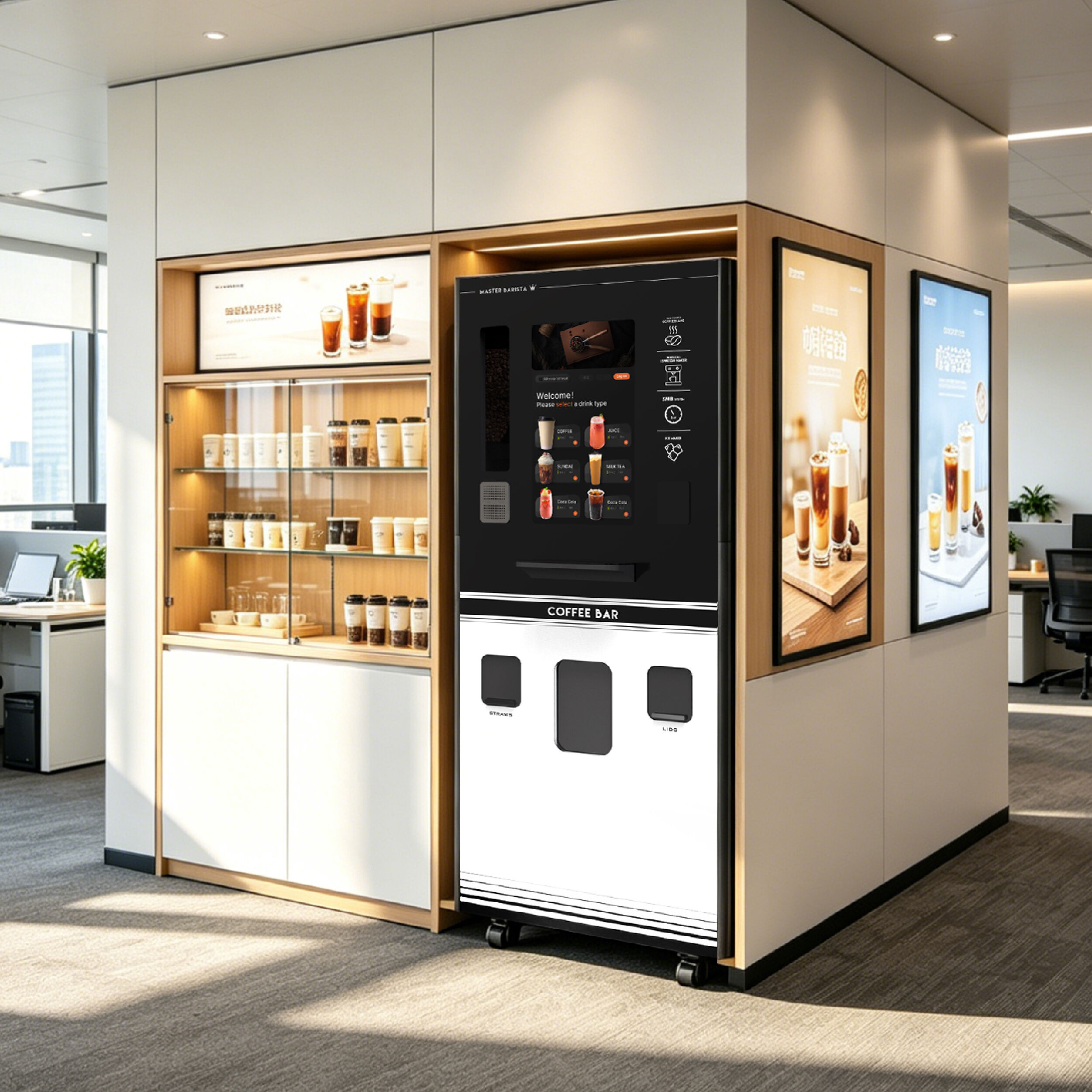

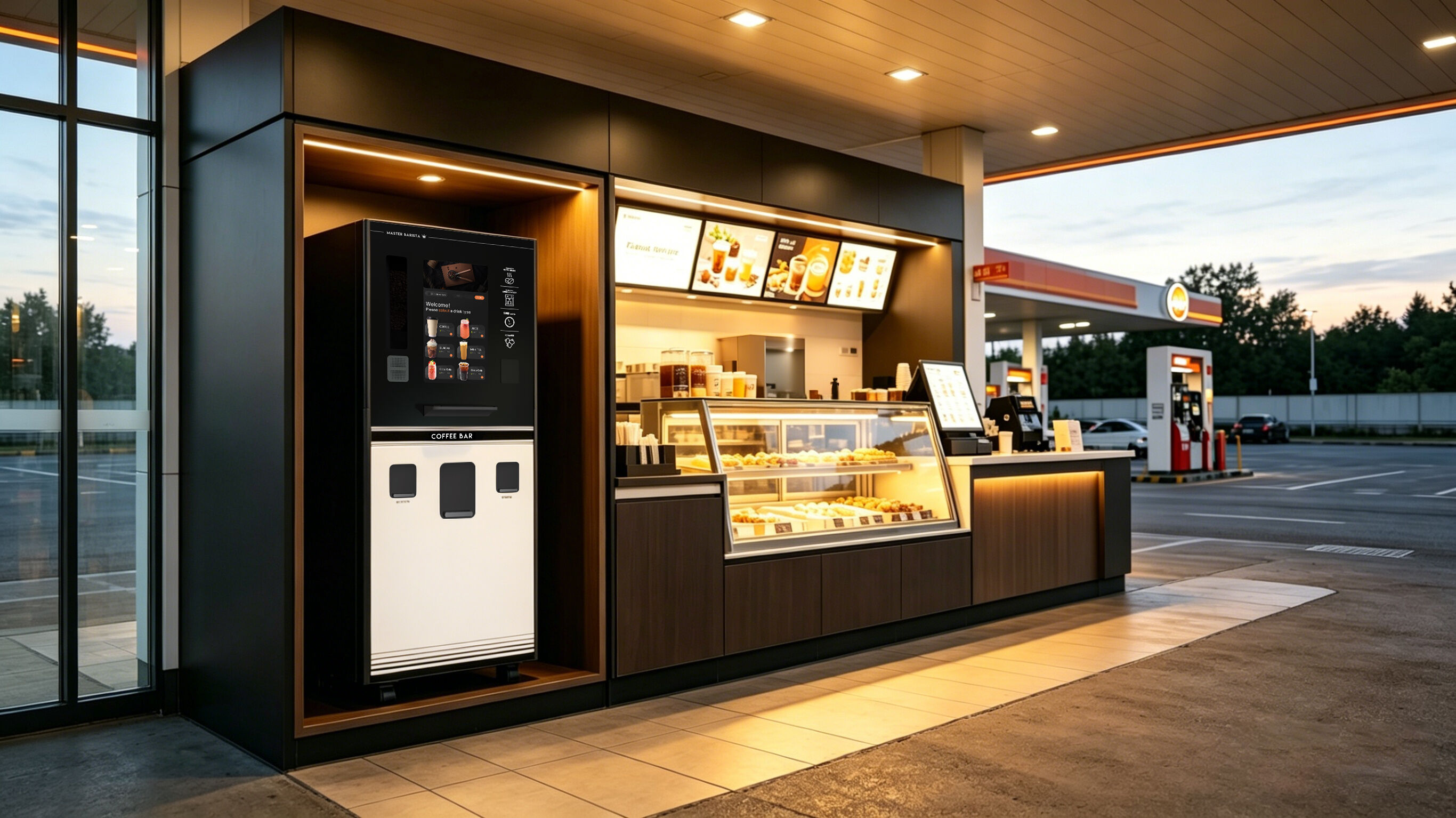

Gym / Office / Car Dealership / Gas Station / Convenience Store...
24 Hour operation, long maintenance interval
Who can say no to such coffee experience?
STABLE · EASY TO OPERATE & MANAGE
FULL UNMANNED SCENARIO

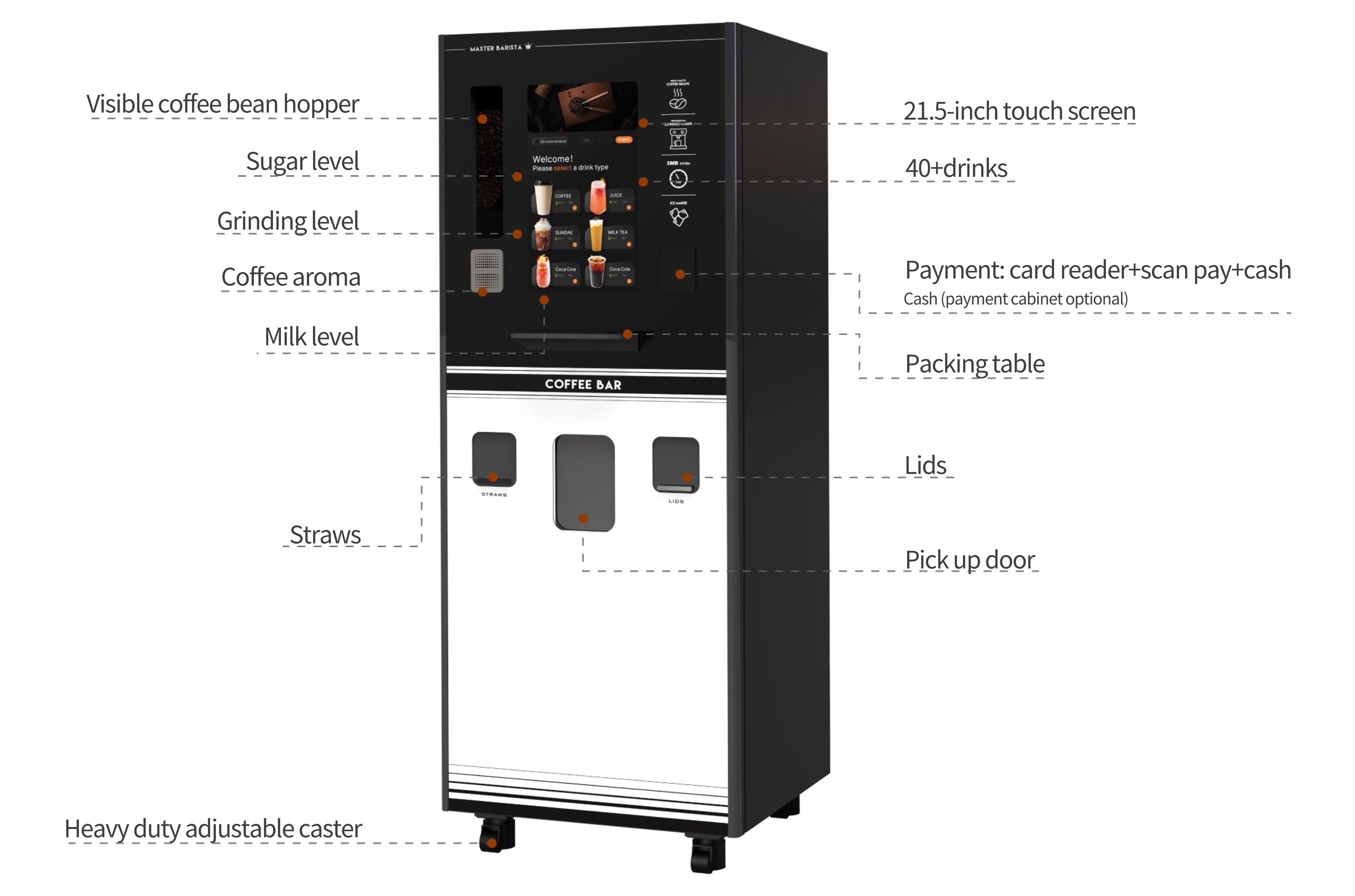

Product Configuration Quick Review
Brewing Status (Grinding Amount: 18g)
SMB Intelligent Brewing System
Flow rate preset · Soaking preset · Brewing pressure preset · Pressing level preset.
1

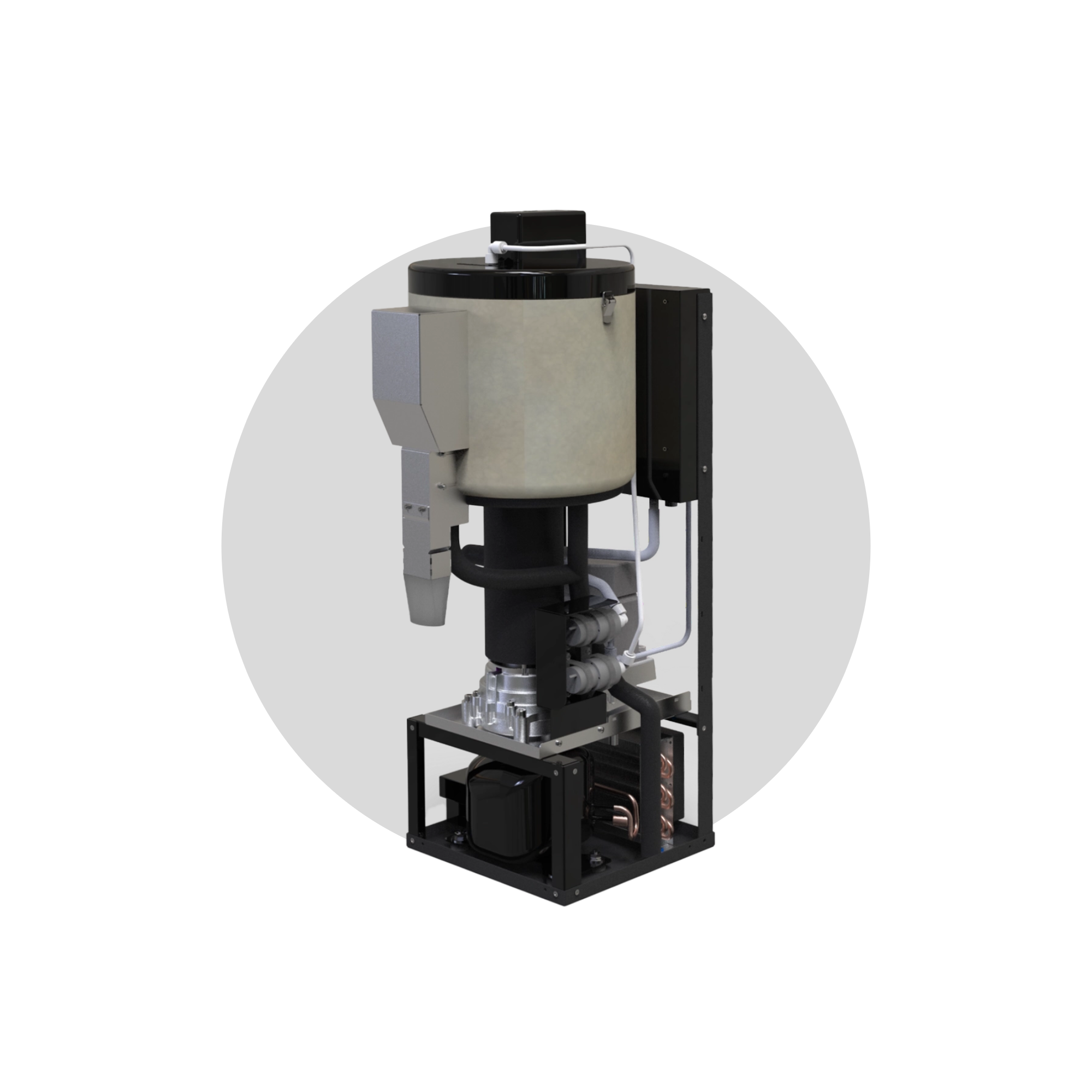

Ice Making Module
30kg class ice maker for different scenarios
R290 environmentally friendly refrigerant
Accurate quantitative ice dispensing with an error of：±5g
Fully automatic spray cleaning, comprehensive sterilization
Crystal & Solid ice cubes
Long time operating under 5-43 °C
Self-developed & Self-produced
2

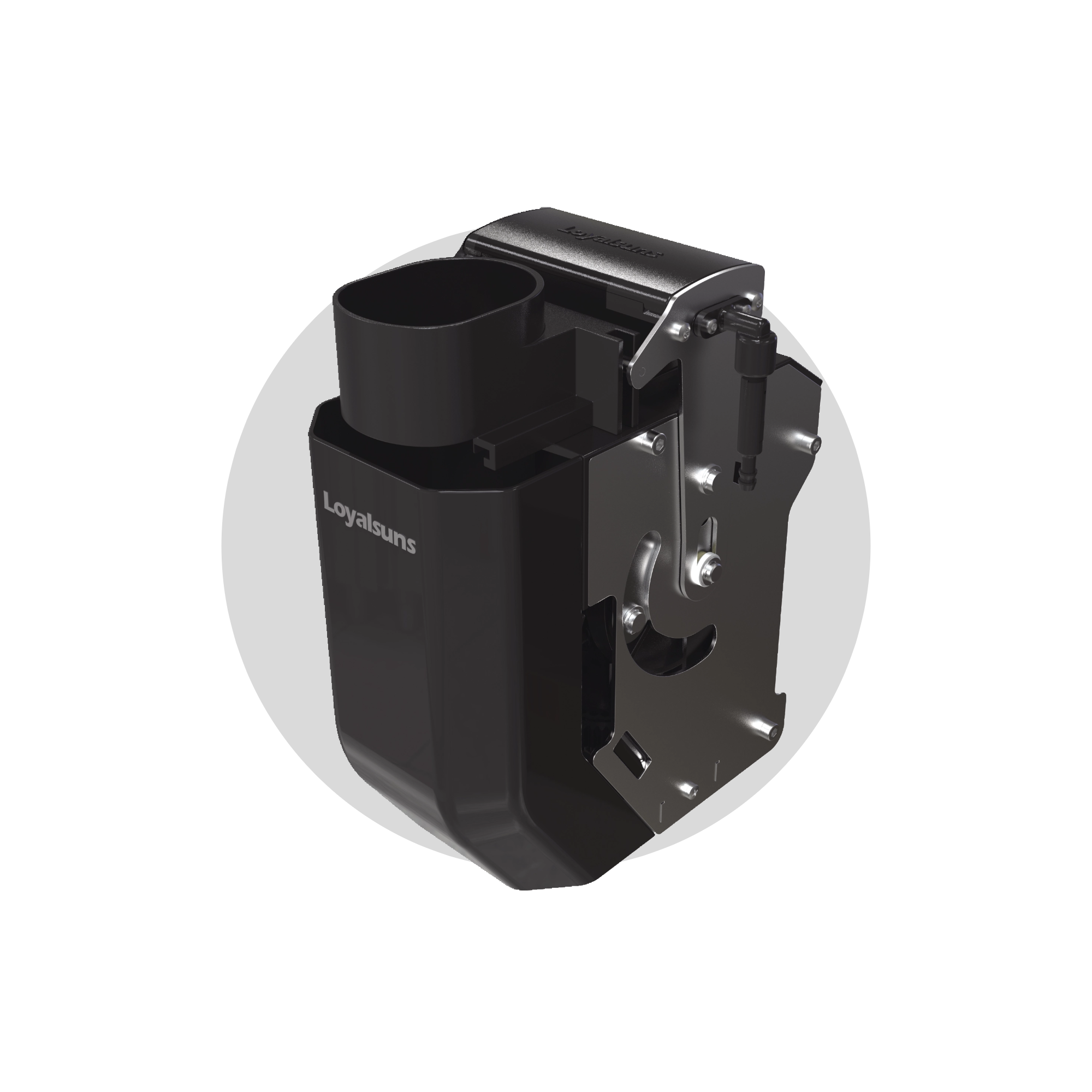

Brewer Module
Φ53mm large diameter commercial extraction chamber
50000 cups maintenance free, 300000 cups total lifespan
12-26g/cup grinding amount
PTC constant temperature system
Fully water-proof
Easy to remove / install
Self-developed & Self-produced

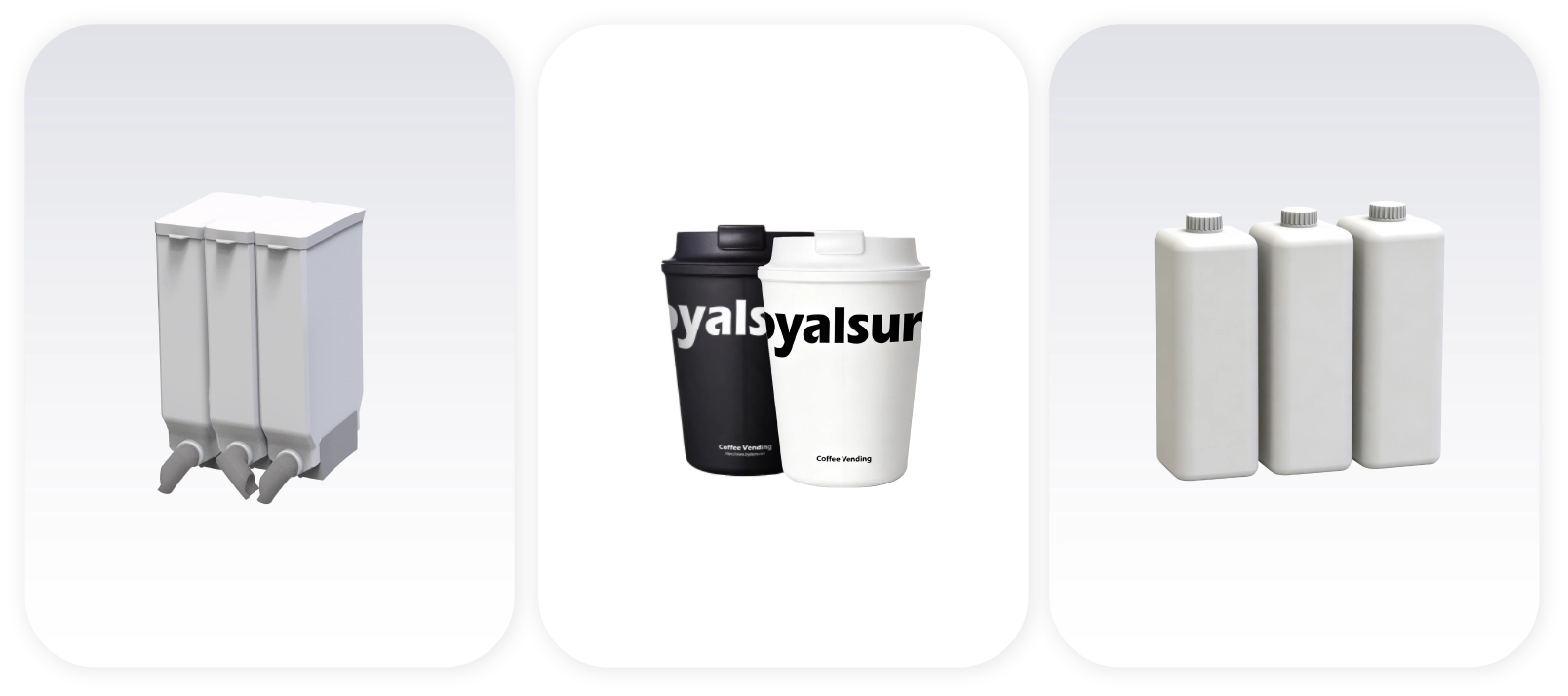

Powder Canister × 3 · Paper cup x150 · Liquid Material × 3
40 + Drinks
Americano, Espresso, Latte, Cappuccino, Mocha,
Fruit Coffee, Milk Tea, Juice, Fruit Tea....
Convenient Coffee Experience
Indulge in freshly brewed master class coffee during work time, gym time, daily life or any other places.
Compared to baristas, the SMB intelligent extraction system has more precise and stable control over the extraction pressure value.
The precision machine is designed to extract the full essence from every bean.
Specifications

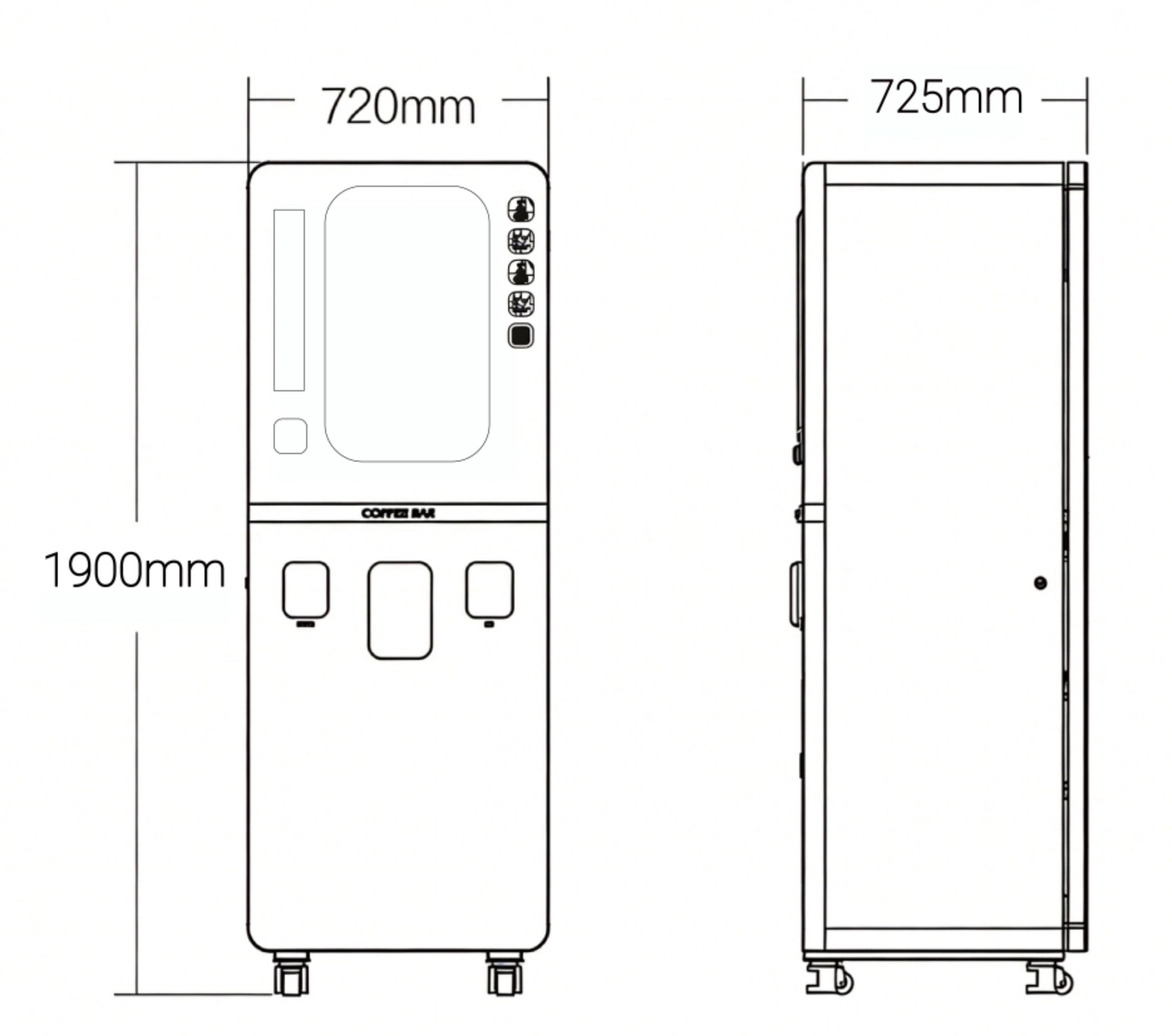

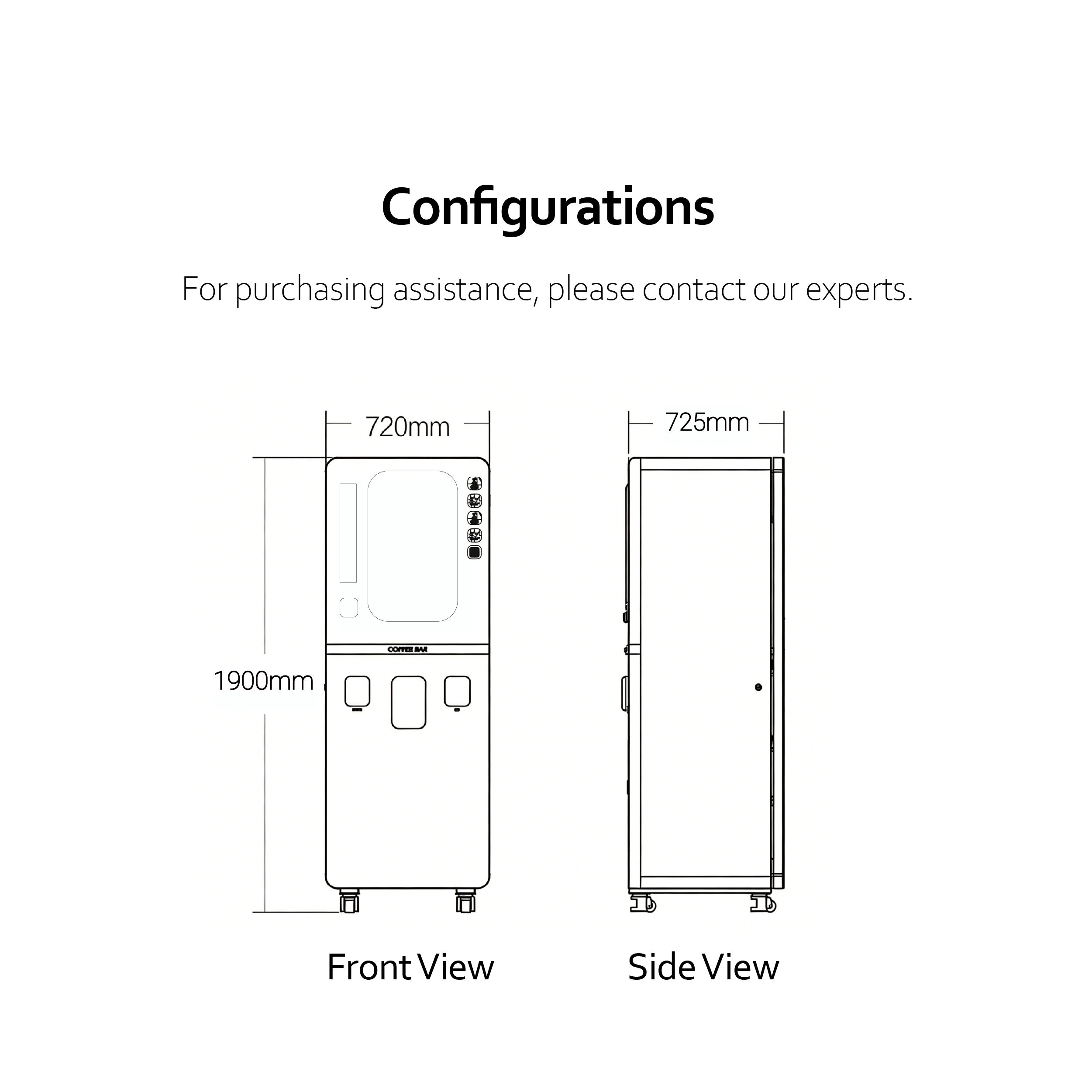

Dimension |
H1900mm×W720mm×D725mm |
Weight |
200Kg |
Operating Temperature |
5-43℃ |
Power Supply Specification |
220-240V~ 50Hz 220-230V~ 60Hz 120V~ 60Hz |
Maximum Power |
2000W |
Standby Power |
＜100W |
Screen Size |
21.5-inch touch screen |
Network |
4G/WIFI/RJ45 Cable |
Payment Method |
WeChat / Alipay / Card Reader / Cash / Third party Interfaces |
Cleaning Method |
Standard cleaning/Regular cleaning/Descaling cleaning |
Pick-up Door |
Transparent lifting door ( anti-pinch protection ) |
Coffee Aroma Outlet |
Equipped |
Packing Table |
Equipped |
Speaker |
8Ω10W Dual Channel Speakers |
Cup Carrying Method |
Visible rotation cup carrier |
Door Lock |
Electronic & Mechanical |
Water Supply |
18L barreled water×2（ include tap water connection） |
Heating Method |
1800W High pressure resistant heat storage boiler |
Paper Cup Dispenser |
1 |
Paper Cup Storage |
3 tubes ( approx.110-150 cups) |
Paper Cup Specification |
90 mm, 12 oz |
Cup Lid |
Lid compartment × 1, Straw compartment × 1 |
Lid Storage |
Approx. 100 pcs |
Lid Specification |
90mm |
Pumps For Syrup |
3 |
Canisters For Powder |
2*3L+1*2L |
Brewer |
1 |
Brewing Parameter |
1*26g 9bar |
Coffee Bean Hopper |
1*2.5kg |
Grinder |
64mm flat burr |
Ice Maker |
30 kg/day |
One-stop intelligent operation management platform
Loyalsuns' intelligent development strategy has extended to a brand-added service line, namely the Loyalsuns 3.0 operational management system. This system enables network-connected control of coffee machines, allowing remote sales management, equipment management, material management, and maintenance operations. It addresses the prevalent data silo phenomenon in the industry, freeing product selection, pricing, maintenance, and troubleshooting from empiricism, and enabling efficient operations through interconnected big data.
Quick integration with third-party software and external payment devices
Equipment Management · Material Management · Third-party Software Integration Operation Management
Sales Management · External Device Payment
Why Us
Focusing on the R&D of commercial autonomous coffee machines for 10+ years
R&D center 2000+ ㎡ · Production base 20000+ ㎡ · R&D team 30+
Multi Country Certification
Loyalsuns
Tailored Solutions
In addition to selling standard commercial coffee machines, we also provide customers with personalized customization services for self-service devices.
Appearance Customization · Module Combination · System Customization · New Function Development
After sales service and technical support
The company has a 12 year professional R&D team with senior engineers in structural design, system development, mechanical automation and other fields, and has obtained dozens of technical patents.
2-to-1 dedicated customer service for software and hardware, providing 24-hour after-sales and technical support to ensure stable operation of the equipment. At the same time, we provide professional equipment training and operational guidance to help customers efficiently establish business.
Whole machine warranty · 24-hour after-sales service · Free technical training· Lifetime technical support
Logistics And Transportation
Solution
For standard commercial coffee machines,
Lead time is 30 working days within 10 machines, and 60 working days between 10-20 machines.
For customized machines, please contact our experts for further discussion.
